VxxxAE-xx

PRODUCT DESCRIPTION

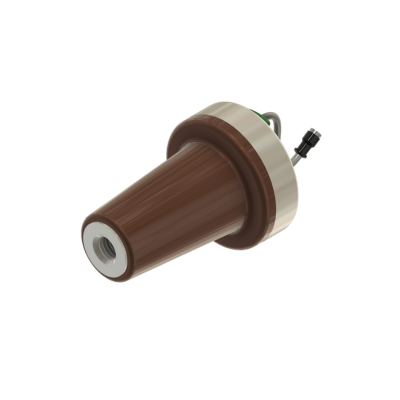

The voltage sensors of Type VxxxAE-xx are commonly used in asymmetric T-connectors of different manufacturers. The T-connectors are usually closed with a dedicated blind plug of a T-connector manufacturer, this could be removed, and the sensor could be installed into this place. The sensor is connected with the common earth and with the secondary connection cable to an IED.

PRODUCT ADVANTAGES

• Passive technology – no active parts are inside, and no power supply is needed
• Short-form factor – sensor is as long as a standard blind plug
• Robust design – hexagon nut is made of solid aluminum
• Sensor can resist torque up to 50Nm used during installation
• Compatible to T-connectors acc. IEC50181, Type C connectors
• High temperature range
