VxxxAE-xx

PRODUCT DESCRIPTION

The voltage sensors of Type VxxxAE-xx are commonly used in T-connectors of different manufacturers. T-connectors use a blind plug to secure the T-connector in place after installation. Our sensors can be used instead of the blind plug in the T-connector and serve both to secure the T-connector in place and measure voltage. The sensor has a point for common earth connection, and an output cable for connection with an intelligent electronic device (IED).

PRODUCT ADVANTAGES

• Passive components – No need for power supplies
• Compact-form-factor – Sensor has the length of a standard blind plug
• Robust design – Tightening cap made of solid aluminum
• Compatible to many different T-connectors
• Wide temperature range

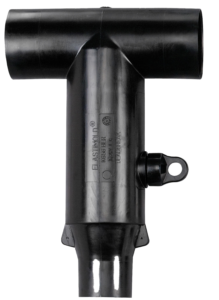

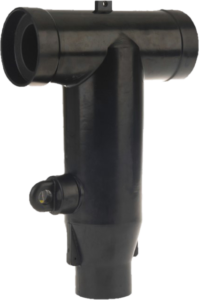

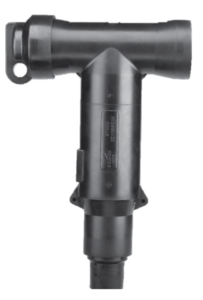

TYPES OF CABLE CONNECTION   Symmetric T-connector / deadbreak
