TxxxB-xx

VxxxB-xx

Voltage sensor for Nexans T-connector 480TB/G
IEC 61869-1, IEC 61869-11

PRODUCT DESCRIPTION

The voltage sensors of Type VxxxB-xx is dedicated to the new T-connector of Euromold/Nexans, called (K)(M)480TB. T-connectors use a blind plug to secure the T-connector in place after installation. Our sensors can be used instead of the blind plug in the T-connector and serve both to secure the T-connector in place and measure voltage. The sensor has a point for common earth connection, and an output cable for connection with an intelligent electronic device (IED).

PRODUCT ADVANTAGES

  • Passive components – No need for power supplies
  • Compact-form-factor – Sensor has the length of a standard blind plug
  • Robust design – Tightening cap made of solid aluminum
  • Compatible to the new T-connector of Euromold/Nexans, called (K)(M)480TB
  • Wide temperature range

TYPES OF CABLE CONNECTION   Symmetric T-connector / deadbreak

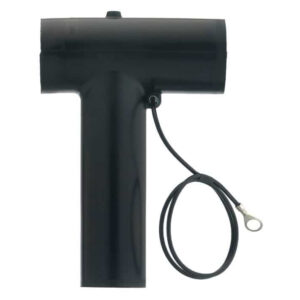

Nexans Euromold

Nexans

480TB/G (12 kV)
K480TB/G (24 kV)
